System on Module

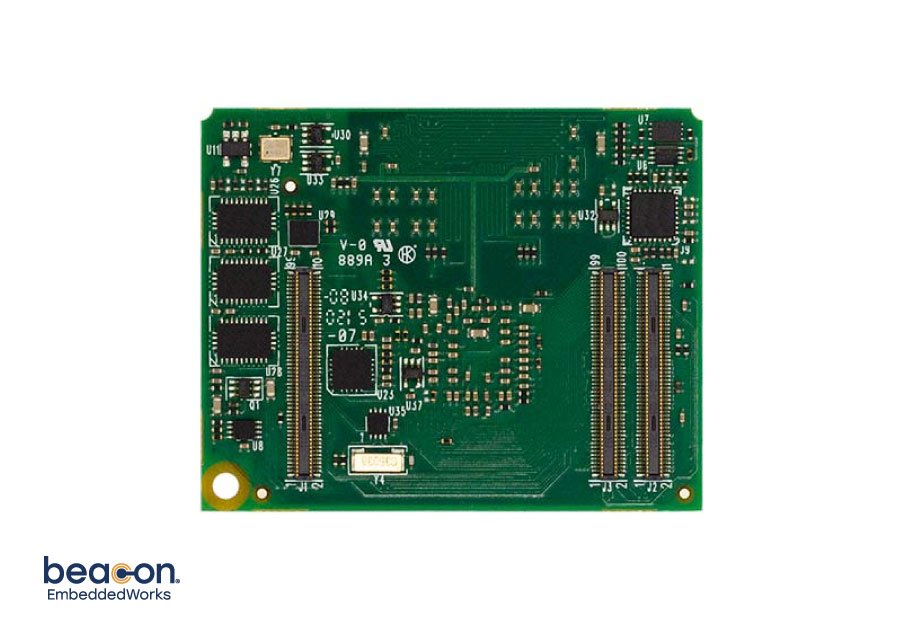

AM3517 SoM-M2

AM3517 SoM-M2

Rs. 33,021.00
Rs. 33,021.00
Sale Sold out
Model
Memory

The AM3517 System on Module (SoM) is a compact, product-ready hardware and software solution that fast forwards embedded designs while reducing risk and controlling cost.

Based on Texas Instruments’ Sitara™ AM3517 microprocessor and designed in the SoM-M2 form factor, the AM3517 module offers essential features for handheld and embedded networking applications. The AM3517 SoM-M2 features the superset AM3517 processor, but also supports the AM3505 processor.

The standard SoM-M2 form factor allows developers to reuse existing baseboard designs when upgrading to new AM processors, which extends roadmap possibilities for end-products.

The compact size of the AM3517 SoM-M2 is ideal for medical patient monitoring wearables and other portable instrumentation applications. The AM3517 SoM includes an SGX530 graphics accelerator and multiple communication ports, including wireless 802.11 b/g/n and wired 10/100 Ethernet peripherals. For commercial signage, medical imaging, avionics, and industrial displays, the AM3517 SoM‑M2 allows for powerful versatility, long-life, and greener products.

Also, by starting with the Zoom eXperimenter Development Kit, engineers can write application software on the same hardware that will be used in their final product.

Processor

  • The AM3517 SOM-M2 supports the Texas Instruments Sitara AM3517 microprocessor with ARM Cortex-A8 RISC core running at 600 MHz.

Software and Tools

  • U-Boot (bootloader/monitor)
  • Android Development Kit
  • TI Linux SDK
  • Timesys Linux BSP
  • Windows Embedded CE SDK

Memory

  • Scalable NAND flash memory (512 MB standard)
  • Boots from onboard NAND or external SD/MMC, NAND, NOR, UART, USB, or Ethernet
  • 166 MHz DDR2 SDRAM, 256 MB standard (scalable to 512MB)

Network Connectivity

  • 10/100 Base-T Ethernet controller (application/debug)
  • 802.11b/g/n wireless Ethernet
  • Bluetooth 2.1 + EDR

USB

  • USB 2.0 High-speed On-the-Go interface
  • USB 2.0 high-speed host interface

Serial I/O

  • Up to four external UARTs
  • CAN 2.0B controller
  • Three I2C ports
  • Three SPI ports

Display

  • SGX530 graphics accelerator (AM3517 only)
  • Programmable color LCD controller supports up to a 24 bpp TFT interface
  • Supports OpenGL 1.1/2.0 & OpenVG 1.0

Expansion

  • Multiple SD/MMC card support

Mechanical Specifications

  • SOM-M2 form factor (40.9 x 51.2 x 4.4 mm)
  • Commercial temperature (0°C to +70°C)
  • Industrial temperature (-40°C to +85°C)
